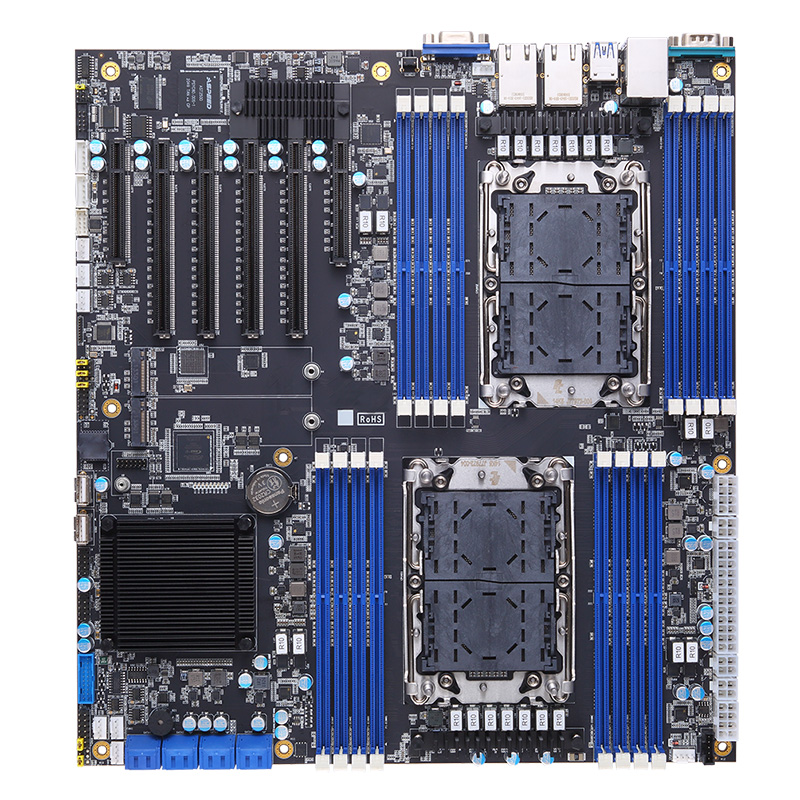

Axiomtek IMB760¶
На самом деле речь не о ней напрямую, но о Плата системная DPC627A, ДАЦН.469535.031 что по факту и есть тот самый аксиомтек. Даже на заставке биоса написано IMB760.
В общем и целом борда по железу ОК, без проблем тянет QWAT'ы на 270 ватт, но биос и бмц просто караул, шаром покати, даже выбьора частоты озу нет.
Docs¶
Specs¶
- mosfets 7x MP86956 delivers 70A per socket (source)
- all es 4-6 stepping cpus works

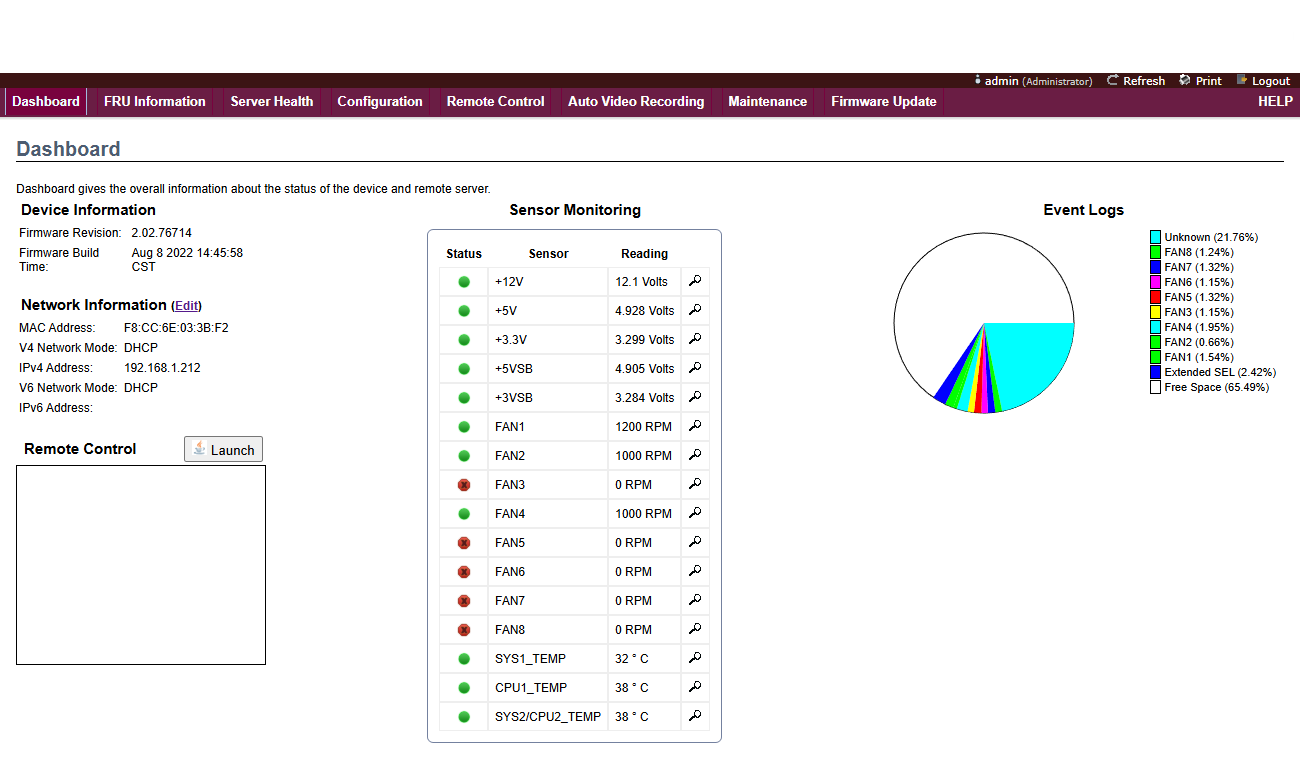

- bmc web ui - Megarac SP (screenshot)
- ver 2.02.76714
- build date Aug 8 2022 14:45:58 CST
- only 24 pin + two cpu 8 pin is required
$ biosdecode
# biosdecode 3.5
SMBIOS 3.3 present.
Structure Table Length: 7692 bytes
Structure Table Address: 0x000E6E00
Number Of Structures: 97
Maximum Structure Size: 184 bytes
SMBIOS 3.3.0 present.
Structure Table Maximum Length: 7692 bytes
Structure Table 64-bit Address: 0x00000000000E6E00
PNP BIOS 1.0 present.
Event Notification: Not Supported
Real Mode 16-bit Code Address: F000:BE16
Real Mode 16-bit Data Address: F000:0000
16-bit Protected Mode Code Address: 0x000FBE3E
16-bit Protected Mode Data Address: 0x000F0000
PCI Interrupt Routing 1.0 present.
Router Device: 00:1f.0
Exclusive IRQs: None
Compatible Router: 8086:27b8
Device: 00:01, on-board
Device: 00:02, on-board
Device: 00:11, on-board
Device: 00:14, on-board
Device: 00:16, on-board
Device: 00:17, on-board
Device: 01:00, slot 3
Device: 00:1c, on-board
Device: 02:00, on-board
Device: 00:1d, on-board
Device: 05:00, slot 238
Device: 04:00, on-board
Device: 06:00, on-board
Device: 65:00, on-board
Device: 64:02, on-board
Device: 80:01, on-board
Device: 00:00, on-board
Device: e3:00, slot 238
Device: e2:04, on-board
$ dmidecode
# dmidecode 3.5
Getting SMBIOS data from sysfs.
SMBIOS 3.3.0 present.
Table at 0x000E6E00.
Handle 0x0000, DMI type 0, 26 bytes
BIOS Information
Vendor: American Megatrends International, LLC.
Version: IMB760 V1.00
Release Date: 05/17/2022
Address: 0xF0000
Runtime Size: 64 kB
ROM Size: 32 MB
Characteristics:
PCI is supported
BIOS is upgradeable
BIOS shadowing is allowed
Boot from CD is supported
Selectable boot is supported
BIOS ROM is socketed
EDD is supported
Japanese floppy for NEC 9800 1.2 MB is supported (int 13h)
Japanese floppy for Toshiba 1.2 MB is supported (int 13h)
5.25"/360 kB floppy services are supported (int 13h)
5.25"/1.2 MB floppy services are supported (int 13h)
3.5"/720 kB floppy services are supported (int 13h)
3.5"/2.88 MB floppy services are supported (int 13h)
Print screen service is supported (int 5h)
8042 keyboard services are supported (int 9h)
Serial services are supported (int 14h)
Printer services are supported (int 17h)
CGA/mono video services are supported (int 10h)
USB legacy is supported
BIOS boot specification is supported
Targeted content distribution is supported
UEFI is supported
BIOS Revision: 5.21
Handle 0x0001, DMI type 1, 27 bytes
System Information
Manufacturer: Intel Corporation
Product Name: WHITLEY
Version: 1.0
Serial Number: Default string
UUID: 6d5c8060-bfde-1000-0491-000000000000
Wake-up Type: Power Switch
SKU Number: Default string
Family: Family
Handle 0x0002, DMI type 2, 15 bytes
Base Board Information
Manufacturer: Intel Corporation
Product Name: WHITLEY
Version: Default string
Serial Number: Default string
Asset Tag: Base Board Asset Tag
Features:
Board is a hosting board
Board is replaceable
Location In Chassis: Part Component
Chassis Handle: 0x0003
Type: Motherboard
Contained Object Handles: 0
Handle 0x0003, DMI type 3, 22 bytes
Chassis Information
Manufacturer: Not Specified
Type: Desktop
Lock: Not Present
Version: 0.1
Serial Number: Default string
Asset Tag: Chassis Asset Tag
Boot-up State: Safe
Power Supply State: Safe
Thermal State: Safe
Security Status: None
OEM Information: 0x00000000
Height: Unspecified
Number Of Power Cords: 1
Contained Elements: 0
SKU Number: Default string
Handle 0x0004, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J1A1
Internal Connector Type: None
External Reference Designator: PS2Mouse
External Connector Type: PS/2
Port Type: Mouse Port
Handle 0x0005, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J1A1
Internal Connector Type: None
External Reference Designator: Keyboard
External Connector Type: PS/2
Port Type: Keyboard Port
Handle 0x0006, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J2A1
Internal Connector Type: None
External Reference Designator: TV Out
External Connector Type: Mini Centronics Type-14
Port Type: Other
Handle 0x0007, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J2A2A
Internal Connector Type: None
External Reference Designator: COM A
External Connector Type: DB-9 male
Port Type: Serial Port 16550A Compatible
Handle 0x0008, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J2A2B
Internal Connector Type: None
External Reference Designator: Video
External Connector Type: DB-15 female
Port Type: Video Port
Handle 0x0009, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J3A1
Internal Connector Type: None
External Reference Designator: USB1
External Connector Type: Access Bus (USB)
Port Type: USB
Handle 0x000A, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J3A1
Internal Connector Type: None
External Reference Designator: USB2
External Connector Type: Access Bus (USB)
Port Type: USB
Handle 0x000B, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J3A1
Internal Connector Type: None
External Reference Designator: USB3
External Connector Type: Access Bus (USB)
Port Type: USB
Handle 0x000C, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J9A1 - TPM HDR
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x000D, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J9C1 - PCIE DOCKING CONN
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x000E, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J2B3 - CPU FAN
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x000F, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J6C2 - EXT HDMI
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x0010, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J3C1 - GMCH FAN
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x0011, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J1D1 - ITP
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x0012, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J9E2 - MDC INTPSR
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x0013, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J9E4 - MDC INTPSR
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x0014, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J9E3 - LPC HOT DOCKING
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x0015, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J9E1 - SCAN MATRIX
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x0016, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J9G1 - LPC SIDE BAND
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x0017, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J8F1 - UNIFIED
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x0018, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J6F1 - LVDS
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x0019, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J2F1 - LAI FAN
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x001A, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J2G1 - GFX VID
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x001B, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J1G6 - AC JACK
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x001C, DMI type 9, 17 bytes
System Slot Information
Designation: Slot C
Type: x4 PCI Express 3 x4
Current Usage: In Use
Length: Long
ID: 3
Characteristics:
3.3 V is provided
PME signal is supported
Bus Address: 0000:00:1c.0
Handle 0x001D, DMI type 9, 17 bytes
System Slot Information
Designation: Slot B
Type: x16 PCI Express
Current Usage: Unknown
Length: Long
ID: 1
Characteristics:
3.3 V is provided
PME signal is supported
Bus Address: 0000:4a:02.0
Handle 0x001E, DMI type 9, 17 bytes
System Slot Information
Designation: Slot D
Type: x16 PCI Express
Current Usage: Unknown
Length: Long
ID: 2
Characteristics:
3.3 V is provided
PME signal is supported
Bus Address: 0000:97:02.0
Handle 0x001F, DMI type 9, 17 bytes
System Slot Information
Designation: Slot 3
Type: x16 PCI Express
Current Usage: Unknown
Length: Long
ID: 3
Characteristics:
3.3 V is provided
PME signal is supported
Bus Address: 0000:30:02.0
Handle 0x0020, DMI type 9, 17 bytes
System Slot Information
Designation: Slot 1
Type: x16 PCI Express
Current Usage: Unknown
Length: Long
ID: 4
Characteristics:
3.3 V is provided
PME signal is supported
Bus Address: 0000:16:02.0
Handle 0x0021, DMI type 9, 17 bytes
System Slot Information
Designation: Slot 6
Type: x16 PCI Express
Current Usage: Unknown
Length: Long
ID: 5
Characteristics:
3.3 V is provided
PME signal is supported
Bus Address: 0000:b0:02.0
Handle 0x0022, DMI type 9, 17 bytes
System Slot Information
Designation: Slot 4
Type: x16 PCI Express
Current Usage: Unknown
Length: Long
ID: 6
Characteristics:
3.3 V is provided
PME signal is supported
Bus Address: 0000:c9:02.0
Handle 0x0023, DMI type 10, 6 bytes
On Board Device Information
Type: Video
Status: Enabled
Description: To Be Filled By O.E.M.
Handle 0x0024, DMI type 11, 5 bytes
OEM Strings
String 1: Default string
Handle 0x0025, DMI type 12, 5 bytes
System Configuration Options
Option 1: Default string
Handle 0x0026, DMI type 32, 20 bytes
System Boot Information
Status: No errors detected
Handle 0x0027, DMI type 26, 22 bytes
Voltage Probe
Description: LM78A
Location: Power Unit
Status: OK
Maximum Value: Unknown
Minimum Value: Unknown
Resolution: Unknown
Tolerance: Unknown
Accuracy: Unknown
OEM-specific Information: 0x00000000
Nominal Value: Unknown
Handle 0x0028, DMI type 28, 22 bytes
Temperature Probe
Description: LM78A
Location: Power Unit
Status: OK
Maximum Value: Unknown
Minimum Value: Unknown
Resolution: Unknown
Tolerance: Unknown
Accuracy: Unknown
OEM-specific Information: 0x00000000
Nominal Value: Unknown
Handle 0x0029, DMI type 27, 15 bytes
Cooling Device
Temperature Probe Handle: 0x0028
Type: Power Supply Fan
Status: OK
Cooling Unit Group: 1
OEM-specific Information: 0x00000000
Nominal Speed: Unknown Or Non-rotating
Description: Cooling Dev 1
Handle 0x002A, DMI type 29, 22 bytes
Electrical Current Probe
Description: ABC
Location: Power Unit
Status: OK
Maximum Value: Unknown
Minimum Value: Unknown
Resolution: Unknown
Tolerance: Unknown
Accuracy: Unknown
OEM-specific Information: 0x00000000
Nominal Value: Unknown
Handle 0x002B, DMI type 39, 22 bytes
System Power Supply
Power Unit Group: 1
Location: To Be Filled By O.E.M.
Name: To Be Filled By O.E.M.
Manufacturer: To Be Filled By O.E.M.
Serial Number: To Be Filled By O.E.M.
Asset Tag: To Be Filled By O.E.M.
Model Part Number: To Be Filled By O.E.M.
Revision: To Be Filled By O.E.M.
Max Power Capacity: Unknown
Status: Present, OK
Type: Switching
Input Voltage Range Switching: Auto-switch
Plugged: Yes
Hot Replaceable: No
Input Voltage Probe Handle: 0x0027
Cooling Device Handle: 0x0029
Input Current Probe Handle: 0x002A
Handle 0x002C, DMI type 44, 9 bytes
Unknown Type
Header and Data:
2C 09 2C 00 FF FF 01 01 00
Handle 0x002D, DMI type 38, 18 bytes
IPMI Device Information
Interface Type: KCS (Keyboard Control Style)
Specification Version: 2.0
I2C Slave Address: 0x10
NV Storage Device: Not Present
Base Address: 0x0000000000000CA2 (I/O)
Register Spacing: Successive Byte Boundaries
Handle 0x002E, DMI type 42, 17 bytes
Management Controller Host Interface
Host Interface Type: KCS: Keyboard Controller Style
Handle 0x002F, DMI type 16, 23 bytes
Physical Memory Array
Location: System Board Or Motherboard
Use: System Memory
Error Correction Type: Single-bit ECC
Maximum Capacity: 12 TB
Error Information Handle: Not Provided
Number Of Devices: 32
Handle 0x0030, DMI type 17, 92 bytes
Memory Device
Array Handle: 0x002F
Error Information Handle: Not Provided
Total Width: 72 bits
Data Width: 64 bits
Size: 16 GB
Form Factor: DIMM
Set: None
Locator: CPU0_DIMM_A1
Bank Locator: NODE 0
Type: DDR4
Type Detail: Synchronous Registered (Buffered)
Speed: 2133 MT/s
Manufacturer: Hynix
Serial Number: 1616-4180660C
Asset Tag: CPU0_DIMM_A1_AssetTag
Part Number: HMA42GR7MFR4N-TF
Rank: 2
Configured Memory Speed: 2133 MT/s
Minimum Voltage: 1.2 V
Maximum Voltage: 1.2 V
Configured Voltage: 1.2 V
Memory Technology: DRAM
Memory Operating Mode Capability: Volatile memory
Firmware Version: 0000
Module Manufacturer ID: Bank 1, Hex 0xAD
Module Product ID: Unknown
Memory Subsystem Controller Manufacturer ID: Unknown
Memory Subsystem Controller Product ID: Unknown
Non-Volatile Size: None
Volatile Size: 16 GB
Cache Size: None
Logical Size: None
Handle 0x0031, DMI type 17, 92 bytes
Memory Device
Array Handle: 0x002F
Error Information Handle: Not Provided
Total Width: Unknown
Data Width: Unknown
Size: No Module Installed
Form Factor: DIMM
Set: None
Locator: CPU0_DIMM_A2
Bank Locator: NODE 0
Type: Unknown
Type Detail: Unknown
Handle 0x0032, DMI type 17, 92 bytes
Memory Device
Array Handle: 0x002F
Error Information Handle: Not Provided
Total Width: 72 bits
Data Width: 64 bits
Size: 16 GB
Form Factor: DIMM
Set: None
Locator: CPU0_DIMM_B1
Bank Locator: NODE 0
Type: DDR4
Type Detail: Synchronous Registered (Buffered)
Speed: 2133 MT/s
Manufacturer: Hynix
Serial Number: 1616-4180662F
Asset Tag: CPU0_DIMM_B1_AssetTag
Part Number: HMA42GR7MFR4N-TF
Rank: 2
Configured Memory Speed: 2133 MT/s
Minimum Voltage: 1.2 V
Maximum Voltage: 1.2 V
Configured Voltage: 1.2 V
Memory Technology: DRAM
Memory Operating Mode Capability: Volatile memory
Firmware Version: 0000
Module Manufacturer ID: Bank 1, Hex 0xAD
Module Product ID: Unknown
Memory Subsystem Controller Manufacturer ID: Unknown
Memory Subsystem Controller Product ID: Unknown
Non-Volatile Size: None
Volatile Size: 16 GB
Cache Size: None
Logical Size: None
Handle 0x0033, DMI type 17, 92 bytes
Memory Device
Array Handle: 0x002F
Error Information Handle: Not Provided
Total Width: Unknown
Data Width: Unknown
Size: No Module Installed
Form Factor: DIMM
Set: None
Locator: CPU0_DIMM_B2
Bank Locator: NODE 0
Type: Unknown
Type Detail: Unknown
Handle 0x0034, DMI type 17, 92 bytes
Memory Device
Array Handle: 0x002F
Error Information Handle: Not Provided
Total Width: 72 bits
Data Width: 64 bits
Size: 16 GB
Form Factor: DIMM
Set: None
Locator: CPU0_DIMM_C1
Bank Locator: NODE 1
Type: DDR4
Type Detail: Synchronous Registered (Buffered)
Speed: 2133 MT/s
Manufacturer: Hynix
Serial Number: 1549-2574A4F2
Asset Tag: CPU0_DIMM_C1_AssetTag
Part Number: HMA42GR7MFR4N-TF
Rank: 2
Configured Memory Speed: 2133 MT/s
Minimum Voltage: 1.2 V
Maximum Voltage: 1.2 V
Configured Voltage: 1.2 V
Memory Technology: DRAM
Memory Operating Mode Capability: Volatile memory
Firmware Version: 0000
Module Manufacturer ID: Bank 1, Hex 0xAD
Module Product ID: Unknown
Memory Subsystem Controller Manufacturer ID: Unknown
Memory Subsystem Controller Product ID: Unknown
Non-Volatile Size: None
Volatile Size: 16 GB
Cache Size: None
Logical Size: None
Handle 0x0035, DMI type 17, 92 bytes
Memory Device
Array Handle: 0x002F
Error Information Handle: Not Provided
Total Width: Unknown
Data Width: Unknown
Size: No Module Installed
Form Factor: DIMM
Set: None
Locator: CPU0_DIMM_C2
Bank Locator: NODE 1
Type: Unknown
Type Detail: Unknown
Handle 0x0036, DMI type 17, 92 bytes
Memory Device
Array Handle: 0x002F
Error Information Handle: Not Provided
Total Width: 72 bits
Data Width: 64 bits
Size: 16 GB
Form Factor: DIMM
Set: None
Locator: CPU0_DIMM_D1
Bank Locator: NODE 1
Type: DDR4
Type Detail: Synchronous Registered (Buffered)
Speed: 2133 MT/s
Manufacturer: Hynix
Serial Number: 1549-2574A5A8
Asset Tag: CPU0_DIMM_D1_AssetTag
Part Number: HMA42GR7MFR4N-TF
Rank: 2
Configured Memory Speed: 2133 MT/s
Minimum Voltage: 1.2 V
Maximum Voltage: 1.2 V
Configured Voltage: 1.2 V
Memory Technology: DRAM
Memory Operating Mode Capability: Volatile memory
Firmware Version: 0000
Module Manufacturer ID: Bank 1, Hex 0xAD
Module Product ID: Unknown
Memory Subsystem Controller Manufacturer ID: Unknown
Memory Subsystem Controller Product ID: Unknown
Non-Volatile Size: None
Volatile Size: 16 GB
Cache Size: None
Logical Size: None
Handle 0x0037, DMI type 17, 92 bytes
Memory Device
Array Handle: 0x002F
Error Information Handle: Not Provided
Total Width: Unknown
Data Width: Unknown
Size: No Module Installed
Form Factor: DIMM
Set: None
Locator: CPU0_DIMM_D2
Bank Locator: NODE 1
Type: Unknown
Type Detail: Unknown
Handle 0x0038, DMI type 17, 92 bytes
Memory Device
Array Handle: 0x002F
Error Information Handle: Not Provided
Total Width: 72 bits
Data Width: 64 bits
Size: 16 GB
Form Factor: DIMM
Set: None
Locator: CPU0_DIMM_E1
Bank Locator: NODE 2
Type: DDR4
Type Detail: Synchronous Registered (Buffered)
Speed: 2133 MT/s
Manufacturer: Hynix
Serial Number: 1536-24B3A042
Asset Tag: CPU0_DIMM_E1_AssetTag
Part Number: HMA42GR7MFR4N-TF
Rank: 2
Configured Memory Speed: 2133 MT/s
Minimum Voltage: 1.2 V
Maximum Voltage: 1.2 V
Configured Voltage: 1.2 V
Memory Technology: DRAM
Memory Operating Mode Capability: Volatile memory
Firmware Version: 0000
Module Manufacturer ID: Bank 1, Hex 0xAD
Module Product ID: Unknown
Memory Subsystem Controller Manufacturer ID: Unknown
Memory Subsystem Controller Product ID: Unknown
Non-Volatile Size: None
Volatile Size: 16 GB
Cache Size: None
Logical Size: None
Handle 0x0039, DMI type 17, 92 bytes
Memory Device
Array Handle: 0x002F
Error Information Handle: Not Provided
Total Width: Unknown
Data Width: Unknown
Size: No Module Installed
Form Factor: DIMM
Set: None
Locator: CPU0_DIMM_E2
Bank Locator: NODE 2
Type: Unknown
Type Detail: Unknown
Handle 0x003A, DMI type 17, 92 bytes
Memory Device
Array Handle: 0x002F
Error Information Handle: Not Provided
Total Width: 72 bits
Data Width: 64 bits
Size: 16 GB
Form Factor: DIMM
Set: None
Locator: CPU0_DIMM_F1
Bank Locator: NODE 2
Type: DDR4
Type Detail: Synchronous Registered (Buffered)
Speed: 2133 MT/s
Manufacturer: Hynix
Serial Number: 1536-24B3A042
Asset Tag: CPU0_DIMM_F1_AssetTag
Part Number: HMA42GR7MFR4N-TF
Rank: 2
Configured Memory Speed: 2133 MT/s
Minimum Voltage: 1.2 V
Maximum Voltage: 1.2 V
Configured Voltage: 1.2 V
Memory Technology: DRAM
Memory Operating Mode Capability: Volatile memory
Firmware Version: 0000
Module Manufacturer ID: Bank 1, Hex 0xAD
Module Product ID: Unknown
Memory Subsystem Controller Manufacturer ID: Unknown
Memory Subsystem Controller Product ID: Unknown
Non-Volatile Size: None
Volatile Size: 16 GB
Cache Size: None
Logical Size: None
Handle 0x003B, DMI type 17, 92 bytes
Memory Device
Array Handle: 0x002F
Error Information Handle: Not Provided
Total Width: Unknown
Data Width: Unknown
Size: No Module Installed
Form Factor: DIMM
Set: None
Locator: CPU0_DIMM_F2
Bank Locator: NODE 2
Type: Unknown
Type Detail: Unknown
Handle 0x003C, DMI type 17, 92 bytes
Memory Device
Array Handle: 0x002F
Error Information Handle: Not Provided
Total Width: 72 bits
Data Width: 64 bits
Size: 16 GB
Form Factor: DIMM
Set: None
Locator: CPU0_DIMM_G1
Bank Locator: NODE 3
Type: DDR4
Type Detail: Synchronous Registered (Buffered)
Speed: 2133 MT/s
Manufacturer: Hynix
Serial Number: 1536-24B3A042
Asset Tag: CPU0_DIMM_G1_AssetTag
Part Number: HMA42GR7MFR4N-TF
Rank: 2
Configured Memory Speed: 2133 MT/s
Minimum Voltage: 1.2 V
Maximum Voltage: 1.2 V
Configured Voltage: 1.2 V
Memory Technology: DRAM
Memory Operating Mode Capability: Volatile memory
Firmware Version: 0000
Module Manufacturer ID: Bank 1, Hex 0xAD
Module Product ID: Unknown
Memory Subsystem Controller Manufacturer ID: Unknown
Memory Subsystem Controller Product ID: Unknown
Non-Volatile Size: None
Volatile Size: 16 GB
Cache Size: None
Logical Size: None
Handle 0x003D, DMI type 17, 92 bytes
Memory Device
Array Handle: 0x002F
Error Information Handle: Not Provided
Total Width: Unknown
Data Width: Unknown
Size: No Module Installed
Form Factor: DIMM
Set: None
Locator: CPU0_DIMM_G2
Bank Locator: NODE 3
Type: Unknown
Type Detail: Unknown
Handle 0x003E, DMI type 17, 92 bytes
Memory Device
Array Handle: 0x002F
Error Information Handle: Not Provided
Total Width: 72 bits
Data Width: 64 bits
Size: 16 GB
Form Factor: DIMM
Set: None
Locator: CPU0_DIMM_H1
Bank Locator: NODE 3
Type: DDR4
Type Detail: Synchronous Registered (Buffered)
Speed: 2133 MT/s
Manufacturer: Hynix
Serial Number: 1536-24B3A042
Asset Tag: CPU0_DIMM_H1_AssetTag
Part Number: HMA42GR7MFR4N-TF
Rank: 2
Configured Memory Speed: 2133 MT/s
Minimum Voltage: 1.2 V
Maximum Voltage: 1.2 V
Configured Voltage: 1.2 V
Memory Technology: DRAM
Memory Operating Mode Capability: Volatile memory
Firmware Version: 0000
Module Manufacturer ID: Bank 1, Hex 0xAD
Module Product ID: Unknown
Memory Subsystem Controller Manufacturer ID: Unknown
Memory Subsystem Controller Product ID: Unknown
Non-Volatile Size: None
Volatile Size: 16 GB
Cache Size: None
Logical Size: None
Handle 0x003F, DMI type 17, 92 bytes
Memory Device
Array Handle: 0x002F
Error Information Handle: Not Provided
Total Width: Unknown
Data Width: Unknown
Size: No Module Installed
Form Factor: DIMM
Set: None
Locator: CPU0_DIMM_H2
Bank Locator: NODE 3
Type: Unknown
Type Detail: Unknown
Handle 0x0040, DMI type 17, 92 bytes
Memory Device
Array Handle: 0x002F
Error Information Handle: Not Provided
Total Width: 72 bits
Data Width: 64 bits
Size: 16 GB
Form Factor: DIMM
Set: None
Locator: CPU1_DIMM_A1
Bank Locator: NODE 4
Type: DDR4
Type Detail: Synchronous Registered (Buffered)
Speed: 2133 MT/s
Manufacturer: Hynix
Serial Number: 1616-41806820
Asset Tag: CPU1_DIMM_A1_AssetTag
Part Number: HMA42GR7MFR4N-TF
Rank: 2
Configured Memory Speed: 2133 MT/s
Minimum Voltage: 1.2 V
Maximum Voltage: 1.2 V
Configured Voltage: 1.2 V
Memory Technology: DRAM
Memory Operating Mode Capability: Volatile memory
Firmware Version: 0000
Module Manufacturer ID: Bank 1, Hex 0xAD
Module Product ID: Unknown
Memory Subsystem Controller Manufacturer ID: Unknown
Memory Subsystem Controller Product ID: Unknown
Non-Volatile Size: None
Volatile Size: 16 GB
Cache Size: None
Logical Size: None
Handle 0x0041, DMI type 17, 92 bytes
Memory Device
Array Handle: 0x002F
Error Information Handle: Not Provided
Total Width: Unknown
Data Width: Unknown
Size: No Module Installed
Form Factor: DIMM
Set: None
Locator: CPU1_DIMM_A2
Bank Locator: NODE 4
Type: Unknown
Type Detail: Unknown
Handle 0x0042, DMI type 17, 92 bytes
Memory Device
Array Handle: 0x002F
Error Information Handle: Not Provided
Total Width: 72 bits
Data Width: 64 bits
Size: 16 GB
Form Factor: DIMM
Set: None
Locator: CPU1_DIMM_B1
Bank Locator: NODE 4
Type: DDR4
Type Detail: Synchronous Registered (Buffered)
Speed: 2133 MT/s
Manufacturer: Hynix
Serial Number: 1616-41806812
Asset Tag: CPU1_DIMM_B1_AssetTag
Part Number: HMA42GR7MFR4N-TF
Rank: 2
Configured Memory Speed: 2133 MT/s
Minimum Voltage: 1.2 V
Maximum Voltage: 1.2 V
Configured Voltage: 1.2 V
Memory Technology: DRAM
Memory Operating Mode Capability: Volatile memory
Firmware Version: 0000
Module Manufacturer ID: Bank 1, Hex 0xAD
Module Product ID: Unknown
Memory Subsystem Controller Manufacturer ID: Unknown
Memory Subsystem Controller Product ID: Unknown
Non-Volatile Size: None
Volatile Size: 16 GB
Cache Size: None
Logical Size: None
Handle 0x0043, DMI type 17, 92 bytes
Memory Device
Array Handle: 0x002F
Error Information Handle: Not Provided
Total Width: Unknown
Data Width: Unknown
Size: No Module Installed
Form Factor: DIMM
Set: None
Locator: CPU1_DIMM_B2
Bank Locator: NODE 4
Type: Unknown
Type Detail: Unknown
Handle 0x0044, DMI type 17, 92 bytes
Memory Device
Array Handle: 0x002F
Error Information Handle: Not Provided
Total Width: 72 bits
Data Width: 64 bits
Size: 16 GB
Form Factor: DIMM
Set: None
Locator: CPU1_DIMM_C1
Bank Locator: NODE 5
Type: DDR4
Type Detail: Synchronous Registered (Buffered)
Speed: 2133 MT/s
Manufacturer: Hynix
Serial Number: 1535-24B09F2B
Asset Tag: CPU1_DIMM_C1_AssetTag
Part Number: HMA42GR7MFR4N-TF
Rank: 2
Configured Memory Speed: 2133 MT/s
Minimum Voltage: 1.2 V
Maximum Voltage: 1.2 V
Configured Voltage: 1.2 V
Memory Technology: DRAM
Memory Operating Mode Capability: Volatile memory
Firmware Version: 0000
Module Manufacturer ID: Bank 1, Hex 0xAD
Module Product ID: Unknown
Memory Subsystem Controller Manufacturer ID: Unknown
Memory Subsystem Controller Product ID: Unknown
Non-Volatile Size: None
Volatile Size: 16 GB
Cache Size: None
Logical Size: None
Handle 0x0045, DMI type 17, 92 bytes
Memory Device
Array Handle: 0x002F
Error Information Handle: Not Provided
Total Width: Unknown
Data Width: Unknown
Size: No Module Installed
Form Factor: DIMM
Set: None
Locator: CPU1_DIMM_C2
Bank Locator: NODE 5
Type: Unknown
Type Detail: Unknown
Handle 0x0046, DMI type 17, 92 bytes
Memory Device
Array Handle: 0x002F
Error Information Handle: Not Provided
Total Width: 72 bits
Data Width: 64 bits
Size: 16 GB
Form Factor: DIMM
Set: None
Locator: CPU1_DIMM_D1
Bank Locator: NODE 5
Type: DDR4
Type Detail: Synchronous Registered (Buffered)
Speed: 2133 MT/s
Manufacturer: Hynix
Serial Number: 1536-24B3A042
Asset Tag: CPU1_DIMM_D1_AssetTag
Part Number: HMA42GR7MFR4N-TF
Rank: 2
Configured Memory Speed: 2133 MT/s
Minimum Voltage: 1.2 V
Maximum Voltage: 1.2 V
Configured Voltage: 1.2 V
Memory Technology: DRAM
Memory Operating Mode Capability: Volatile memory
Firmware Version: 0000
Module Manufacturer ID: Bank 1, Hex 0xAD
Module Product ID: Unknown
Memory Subsystem Controller Manufacturer ID: Unknown
Memory Subsystem Controller Product ID: Unknown
Non-Volatile Size: None
Volatile Size: 16 GB
Cache Size: None
Logical Size: None
Handle 0x0047, DMI type 17, 92 bytes
Memory Device
Array Handle: 0x002F
Error Information Handle: Not Provided
Total Width: Unknown
Data Width: Unknown
Size: No Module Installed
Form Factor: DIMM
Set: None
Locator: CPU1_DIMM_D2
Bank Locator: NODE 5
Type: Unknown
Type Detail: Unknown
Handle 0x0048, DMI type 17, 92 bytes
Memory Device
Array Handle: 0x002F
Error Information Handle: Not Provided
Total Width: 72 bits
Data Width: 64 bits
Size: 16 GB
Form Factor: DIMM
Set: None
Locator: CPU1_DIMM_E1
Bank Locator: NODE 6
Type: DDR4
Type Detail: Synchronous Registered (Buffered)
Speed: 2666 MT/s
Manufacturer: Hynix
Serial Number: 1826-4295CC3B
Asset Tag: CPU1_DIMM_E1_AssetTag
Part Number: HMA82GR7JJR4N-VK
Rank: 1
Configured Memory Speed: 2133 MT/s
Minimum Voltage: 1.2 V
Maximum Voltage: 1.2 V
Configured Voltage: 1.2 V
Memory Technology: DRAM
Memory Operating Mode Capability: Volatile memory
Firmware Version: 0000
Module Manufacturer ID: Bank 1, Hex 0xAD
Module Product ID: Unknown
Memory Subsystem Controller Manufacturer ID: Unknown
Memory Subsystem Controller Product ID: Unknown
Non-Volatile Size: None
Volatile Size: 16 GB
Cache Size: None
Logical Size: None
Handle 0x0049, DMI type 17, 92 bytes
Memory Device
Array Handle: 0x002F
Error Information Handle: Not Provided
Total Width: Unknown
Data Width: Unknown
Size: No Module Installed
Form Factor: DIMM
Set: None
Locator: CPU1_DIMM_E2
Bank Locator: NODE 6
Type: Unknown
Type Detail: Unknown
Handle 0x004A, DMI type 17, 92 bytes
Memory Device
Array Handle: 0x002F
Error Information Handle: Not Provided
Total Width: 72 bits
Data Width: 64 bits
Size: 16 GB
Form Factor: DIMM
Set: None
Locator: CPU1_DIMM_F1
Bank Locator: NODE 6
Type: DDR4
Type Detail: Synchronous Registered (Buffered)
Speed: 2666 MT/s
Manufacturer: Hynix
Serial Number: 1826-4295CC52
Asset Tag: CPU1_DIMM_F1_AssetTag
Part Number: HMA82GR7JJR4N-VK
Rank: 1
Configured Memory Speed: 2133 MT/s
Minimum Voltage: 1.2 V
Maximum Voltage: 1.2 V
Configured Voltage: 1.2 V
Memory Technology: DRAM
Memory Operating Mode Capability: Volatile memory
Firmware Version: 0000
Module Manufacturer ID: Bank 1, Hex 0xAD
Module Product ID: Unknown
Memory Subsystem Controller Manufacturer ID: Unknown
Memory Subsystem Controller Product ID: Unknown
Non-Volatile Size: None
Volatile Size: 16 GB
Cache Size: None
Logical Size: None
Handle 0x004B, DMI type 17, 92 bytes
Memory Device
Array Handle: 0x002F
Error Information Handle: Not Provided
Total Width: Unknown
Data Width: Unknown
Size: No Module Installed
Form Factor: DIMM
Set: None
Locator: CPU1_DIMM_F2
Bank Locator: NODE 6
Type: Unknown
Type Detail: Unknown
Handle 0x004C, DMI type 17, 92 bytes
Memory Device
Array Handle: 0x002F
Error Information Handle: Not Provided
Total Width: 72 bits
Data Width: 64 bits
Size: 16 GB
Form Factor: DIMM
Set: None
Locator: CPU1_DIMM_G1
Bank Locator: NODE 7
Type: DDR4
Type Detail: Synchronous Registered (Buffered)
Speed: 2666 MT/s
Manufacturer: Hynix
Serial Number: 1826-4295CC38
Asset Tag: CPU1_DIMM_G1_AssetTag
Part Number: HMA82GR7JJR4N-VK
Rank: 1
Configured Memory Speed: 2133 MT/s
Minimum Voltage: 1.2 V
Maximum Voltage: 1.2 V
Configured Voltage: 1.2 V
Memory Technology: DRAM
Memory Operating Mode Capability: Volatile memory
Firmware Version: 0000
Module Manufacturer ID: Bank 1, Hex 0xAD
Module Product ID: Unknown
Memory Subsystem Controller Manufacturer ID: Unknown
Memory Subsystem Controller Product ID: Unknown
Non-Volatile Size: None
Volatile Size: 16 GB
Cache Size: None
Logical Size: None
Handle 0x004D, DMI type 17, 92 bytes
Memory Device
Array Handle: 0x002F
Error Information Handle: Not Provided
Total Width: Unknown
Data Width: Unknown
Size: No Module Installed
Form Factor: DIMM
Set: None
Locator: CPU1_DIMM_G2
Bank Locator: NODE 7
Type: Unknown
Type Detail: Unknown
Handle 0x004E, DMI type 17, 92 bytes
Memory Device
Array Handle: 0x002F
Error Information Handle: Not Provided
Total Width: 72 bits
Data Width: 64 bits
Size: 16 GB
Form Factor: DIMM
Set: None
Locator: CPU1_DIMM_H1
Bank Locator: NODE 7
Type: DDR4
Type Detail: Synchronous Registered (Buffered)
Speed: 2666 MT/s
Manufacturer: Hynix
Serial Number: 1826-4295CC40
Asset Tag: CPU1_DIMM_H1_AssetTag
Part Number: HMA82GR7JJR4N-VK
Rank: 1
Configured Memory Speed: 2133 MT/s
Minimum Voltage: 1.2 V
Maximum Voltage: 1.2 V
Configured Voltage: 1.2 V
Memory Technology: DRAM
Memory Operating Mode Capability: Volatile memory
Firmware Version: 0000
Module Manufacturer ID: Bank 1, Hex 0xAD
Module Product ID: Unknown
Memory Subsystem Controller Manufacturer ID: Unknown
Memory Subsystem Controller Product ID: Unknown
Non-Volatile Size: None
Volatile Size: 16 GB
Cache Size: None
Logical Size: None
Handle 0x004F, DMI type 17, 92 bytes
Memory Device
Array Handle: 0x002F
Error Information Handle: Not Provided
Total Width: Unknown
Data Width: Unknown
Size: No Module Installed
Form Factor: DIMM
Set: None
Locator: CPU1_DIMM_H2
Bank Locator: NODE 7
Type: Unknown
Type Detail: Unknown
Handle 0x0050, DMI type 19, 31 bytes
Memory Array Mapped Address
Starting Address: 0x00000000000
Ending Address: 0x0007FFFFFFF
Range Size: 2 GB
Physical Array Handle: 0x002F
Partition Width: 8
Handle 0x0051, DMI type 19, 31 bytes
Memory Array Mapped Address
Starting Address: 0x00100000000
Ending Address: 0x0207FFFFFFF
Range Size: 126 GB
Physical Array Handle: 0x002F
Partition Width: 8
Handle 0x0052, DMI type 19, 31 bytes
Memory Array Mapped Address
Starting Address: 0x02080000000
Ending Address: 0x0407FFFFFFF
Range Size: 128 GB
Physical Array Handle: 0x002F
Partition Width: 8
Handle 0x0053, DMI type 133, 12 bytes
OEM-specific Type
Header and Data:
85 0C 53 00 00 D0 E6 6A 00 40 00 00
Handle 0x0054, DMI type 7, 27 bytes
Cache Information
Socket Designation: L1-Cache
Configuration: Enabled, Not Socketed, Level 1
Operational Mode: Write Back
Location: Internal
Installed Size: 3040 kB
Maximum Size: 3040 kB
Supported SRAM Types:
Synchronous
Installed SRAM Type: Synchronous
Speed: Unknown
Error Correction Type: Single-bit ECC
System Type: Unified
Associativity: 8-way Set-associative
Handle 0x0055, DMI type 7, 27 bytes
Cache Information
Socket Designation: L2-Cache
Configuration: Enabled, Not Socketed, Level 2
Operational Mode: Varies With Memory Address
Location: Internal
Installed Size: 48640 kB
Maximum Size: 48640 kB
Supported SRAM Types:
Synchronous
Installed SRAM Type: Synchronous
Speed: Unknown
Error Correction Type: Single-bit ECC
System Type: Unified
Associativity: 20-way Set-associative
Handle 0x0056, DMI type 7, 27 bytes
Cache Information
Socket Designation: L3-Cache
Configuration: Enabled, Not Socketed, Level 3
Operational Mode: Varies With Memory Address
Location: Internal
Installed Size: 57 MB
Maximum Size: 57 MB
Supported SRAM Types:
Synchronous
Installed SRAM Type: Synchronous
Speed: Unknown
Error Correction Type: Single-bit ECC
System Type: Unified
Associativity: 12-way Set-associative
Handle 0x0057, DMI type 4, 48 bytes
Processor Information
Socket Designation: CPU0
Type: Central Processor
Family: Xeon
Manufacturer: Intel(R) Corporation
ID: A6 06 06 00 FF FB EB BF
Signature: Type 0, Family 6, Model 106, Stepping 6
Flags:
FPU (Floating-point unit on-chip)
VME (Virtual mode extension)
DE (Debugging extension)
PSE (Page size extension)
TSC (Time stamp counter)
MSR (Model specific registers)
PAE (Physical address extension)
MCE (Machine check exception)
CX8 (CMPXCHG8 instruction supported)
APIC (On-chip APIC hardware supported)
SEP (Fast system call)
MTRR (Memory type range registers)
PGE (Page global enable)
MCA (Machine check architecture)
CMOV (Conditional move instruction supported)
PAT (Page attribute table)
PSE-36 (36-bit page size extension)
CLFSH (CLFLUSH instruction supported)
DS (Debug store)
ACPI (ACPI supported)
MMX (MMX technology supported)
FXSR (FXSAVE and FXSTOR instructions supported)
SSE (Streaming SIMD extensions)
SSE2 (Streaming SIMD extensions 2)
SS (Self-snoop)
HTT (Multi-threading)
TM (Thermal monitor supported)
PBE (Pending break enabled)
Version: Genuine Intel(R) CPU 0000%@
Voltage: 1.6 V
External Clock: 100 MHz
Max Speed: 4000 MHz
Current Speed: 2200 MHz
Status: Populated, Enabled
Upgrade: Socket LGA4189
L1 Cache Handle: 0x0054
L2 Cache Handle: 0x0055
L3 Cache Handle: 0x0056
Serial Number: Not Specified
Asset Tag: UNKNOWN
Part Number: Not Specified
Core Count: 38
Core Enabled: 38
Thread Count: 76
Characteristics:
64-bit capable
Multi-Core
Hardware Thread
Execute Protection
Enhanced Virtualization
Power/Performance Control
Handle 0x0058, DMI type 7, 27 bytes
Cache Information
Socket Designation: L1-Cache
Configuration: Enabled, Not Socketed, Level 1
Operational Mode: Write Back
Location: Internal
Installed Size: 3040 kB
Maximum Size: 3040 kB
Supported SRAM Types:
Synchronous
Installed SRAM Type: Synchronous
Speed: Unknown
Error Correction Type: Single-bit ECC
System Type: Unified
Associativity: 8-way Set-associative
Handle 0x0059, DMI type 7, 27 bytes
Cache Information
Socket Designation: L2-Cache
Configuration: Enabled, Not Socketed, Level 2
Operational Mode: Varies With Memory Address
Location: Internal
Installed Size: 48640 kB
Maximum Size: 48640 kB
Supported SRAM Types:
Synchronous
Installed SRAM Type: Synchronous
Speed: Unknown
Error Correction Type: Single-bit ECC
System Type: Unified
Associativity: 20-way Set-associative
Handle 0x005A, DMI type 7, 27 bytes
Cache Information
Socket Designation: L3-Cache
Configuration: Enabled, Not Socketed, Level 3
Operational Mode: Varies With Memory Address
Location: Internal
Installed Size: 57 MB
Maximum Size: 57 MB
Supported SRAM Types:
Synchronous
Installed SRAM Type: Synchronous
Speed: Unknown
Error Correction Type: Single-bit ECC
System Type: Unified
Associativity: 12-way Set-associative
Handle 0x005B, DMI type 4, 48 bytes
Processor Information
Socket Designation: CPU1
Type: Central Processor
Family: Xeon
Manufacturer: Intel(R) Corporation
ID: A6 06 06 00 FF FB EB BF
Signature: Type 0, Family 6, Model 106, Stepping 6
Flags:
FPU (Floating-point unit on-chip)
VME (Virtual mode extension)
DE (Debugging extension)
PSE (Page size extension)
TSC (Time stamp counter)
MSR (Model specific registers)
PAE (Physical address extension)
MCE (Machine check exception)
CX8 (CMPXCHG8 instruction supported)
APIC (On-chip APIC hardware supported)
SEP (Fast system call)
MTRR (Memory type range registers)
PGE (Page global enable)
MCA (Machine check architecture)
CMOV (Conditional move instruction supported)
PAT (Page attribute table)
PSE-36 (36-bit page size extension)
CLFSH (CLFLUSH instruction supported)
DS (Debug store)
ACPI (ACPI supported)
MMX (MMX technology supported)
FXSR (FXSAVE and FXSTOR instructions supported)
SSE (Streaming SIMD extensions)
SSE2 (Streaming SIMD extensions 2)
SS (Self-snoop)
HTT (Multi-threading)
TM (Thermal monitor supported)
PBE (Pending break enabled)
Version: Genuine Intel(R) CPU 0000%@
Voltage: 1.6 V
External Clock: 100 MHz
Max Speed: 4000 MHz
Current Speed: 2200 MHz
Status: Populated, Enabled
Upgrade: Socket LGA4189
L1 Cache Handle: 0x0058
L2 Cache Handle: 0x0059
L3 Cache Handle: 0x005A
Serial Number: Not Specified
Asset Tag: UNKNOWN
Part Number: Not Specified
Core Count: 38
Core Enabled: 38
Thread Count: 76
Characteristics:
64-bit capable
Multi-Core
Hardware Thread
Execute Protection
Enhanced Virtualization
Power/Performance Control
Handle 0x0060, DMI type 13, 22 bytes
BIOS Language Information
Language Description Format: Long
Installable Languages: 1
en|US|iso8859-1
Currently Installed Language: en|US|iso8859-1
Handle 0x0068, DMI type 41, 11 bytes
Onboard Device
Reference Designation: Onboard SATA Controller
Type: SATA Controller
Status: Enabled
Type Instance: 1
Bus Address: 0000:00:11.5
Handle 0x0069, DMI type 41, 11 bytes
Onboard Device
Reference Designation: Onboard SATA Controller
Type: SATA Controller
Status: Enabled
Type Instance: 2
Bus Address: 0000:00:17.0
Handle 0x006A, DMI type 41, 11 bytes
Onboard Device
Reference Designation: Onboard ETHERNET Controller
Type: Ethernet
Status: Enabled
Type Instance: 1
Bus Address: 0000:06:00.0
Handle 0x006B, DMI type 127, 4 bytes
End Of Table
Проблемы и их решения (?)¶
- Q: Винтики для М2 больше стандартных?
- A: Да, используются M3 (5mm+-)
- Q: Кажется или в BMC неверные данные по температурам?
- A: Не кажется. Не смотрим на попугаи в BMC, но вольтаж и обороты вертушек там правильно показывает (с округлением до сотен)
- Q: Тесты подсистемы памяти в AIDA64 показывают какие то странные цифры
- A: Бывает, используйте intel mlc
- Q: UEFI не видит csm boot devices?
- A: Завести не удалось
Sensors¶
All sensors¶
$ sensors
nct7802-i2c-0-2f
Adapter: SMBus I801 adapter at 0780
in0: 3.36 V (min = +0.00 V, max = +4.09 V)
in1: 664.00 mV
FAN4: 0 RPM (min = 0 RPM)
FAN5: 0 RPM (min = 0 RPM)
FAN6: 0 RPM (min = 0 RPM)
temp1: +30.1°C (low = +0.0°C, high = +85.0°C)
(crit = +100.0°C) sensor = thermistor
temp2: +36.0°C (low = +0.0°C, high = +85.0°C)
(crit = +100.0°C) sensor = thermistor
temp3: +36.1°C (low = +0.0°C, high = +85.0°C)
(crit = +100.0°C) sensor = thermistor
temp4: +30.0°C (low = +0.0°C, high = +85.0°C)
(crit = +100.0°C)
temp5: +0.0°C (low = +0.0°C, high = +85.0°C)
(crit = +100.0°C)
power_meter-acpi-0
Adapter: ACPI interface
power1: N/A (interval = 4294967.29 s)
f81768d-isa-0a20
Adapter: ISA adapter
in0: 1.65 V
in1: 1.60 V (max = +2.04 V)
in2: 984.00 mV
in3: 2.04 V
in4: 2.04 V
in5: 0.00 V
in6: 0.00 V
in7: 1.65 V
in8: 1.65 V
in9: 1.66 V
in10: 1.65 V
FAN-CPU1: 1347 RPM
FAN-CPU2: 1178 RPM
temp1: +31.0°C (high = +85.0°C, hyst = +81.0°C)
(crit = +100.0°C, hyst = +96.0°C) sensor = transistor
temp2: +32.0°C (high = +85.0°C, hyst = +81.0°C)
(crit = +100.0°C, hyst = +96.0°C) sensor = transistor
temp3: FAULT (high = +70.0°C, hyst = +68.0°C)
(crit = +85.0°C, hyst = +83.0°C) sensor = transistor
coretemp-isa-0000
Adapter: ISA adapter
Package id 0: +32.0°C (high = +97.0°C, crit = +107.0°C)
Core 0: +30.0°C (high = +97.0°C, crit = +107.0°C)
Core 1: +29.0°C (high = +97.0°C, crit = +107.0°C)
Core 2: +30.0°C (high = +97.0°C, crit = +107.0°C)
Core 3: +27.0°C (high = +97.0°C, crit = +107.0°C)
Core 4: +29.0°C (high = +97.0°C, crit = +107.0°C)
Core 5: +31.0°C (high = +97.0°C, crit = +107.0°C)
Core 6: +30.0°C (high = +97.0°C, crit = +107.0°C)
Core 7: +30.0°C (high = +97.0°C, crit = +107.0°C)
Core 8: +32.0°C (high = +97.0°C, crit = +107.0°C)
Core 9: +31.0°C (high = +97.0°C, crit = +107.0°C)
Core 10: +31.0°C (high = +97.0°C, crit = +107.0°C)
Core 11: +30.0°C (high = +97.0°C, crit = +107.0°C)
Core 12: +30.0°C (high = +97.0°C, crit = +107.0°C)
Core 13: +30.0°C (high = +97.0°C, crit = +107.0°C)
Core 14: +30.0°C (high = +97.0°C, crit = +107.0°C)
Core 15: +32.0°C (high = +97.0°C, crit = +107.0°C)
Core 16: +30.0°C (high = +97.0°C, crit = +107.0°C)
Core 17: +30.0°C (high = +97.0°C, crit = +107.0°C)
Core 18: +30.0°C (high = +97.0°C, crit = +107.0°C)
Core 19: +31.0°C (high = +97.0°C, crit = +107.0°C)
Core 20: +29.0°C (high = +97.0°C, crit = +107.0°C)
Core 21: +29.0°C (high = +97.0°C, crit = +107.0°C)
Core 22: +29.0°C (high = +97.0°C, crit = +107.0°C)
Core 23: +30.0°C (high = +97.0°C, crit = +107.0°C)
Core 24: +30.0°C (high = +97.0°C, crit = +107.0°C)
Core 25: +29.0°C (high = +97.0°C, crit = +107.0°C)
Core 26: +29.0°C (high = +97.0°C, crit = +107.0°C)
Core 27: +32.0°C (high = +97.0°C, crit = +107.0°C)
Core 28: +30.0°C (high = +97.0°C, crit = +107.0°C)
Core 29: +31.0°C (high = +97.0°C, crit = +107.0°C)
Core 30: +31.0°C (high = +97.0°C, crit = +107.0°C)
Core 31: +31.0°C (high = +97.0°C, crit = +107.0°C)
Core 32: +32.0°C (high = +97.0°C, crit = +107.0°C)
Core 33: +31.0°C (high = +97.0°C, crit = +107.0°C)
Core 34: +30.0°C (high = +97.0°C, crit = +107.0°C)
Core 35: +31.0°C (high = +97.0°C, crit = +107.0°C)
Core 36: +29.0°C (high = +97.0°C, crit = +107.0°C)
Core 37: +30.0°C (high = +97.0°C, crit = +107.0°C)
nct7802-i2c-0-28
Adapter: SMBus I801 adapter at 0780
in0: 3.37 V (min = +0.00 V, max = +4.09 V)
in1: 680.00 mV
FAN1: 0 RPM (min = 0 RPM)
FAN2: 1036 RPM (min = 0 RPM)
FAN3: 0 RPM (min = 0 RPM)
temp1: +30.8°C (low = +0.0°C, high = +85.0°C)
(crit = +100.0°C) sensor = thermistor
temp2: +33.1°C (low = +0.0°C, high = +85.0°C)
(crit = +100.0°C) sensor = thermistor
temp3: +39.6°C (low = +0.0°C, high = +85.0°C)
(crit = +100.0°C) sensor = thermistor
temp4: +31.0°C (low = +0.0°C, high = +85.0°C)
(crit = +100.0°C)
temp5: +0.0°C (low = +0.0°C, high = +85.0°C)
(crit = +100.0°C)
pch_lewisburg-virtual-0
Adapter: Virtual device
temp1: +36.0°C
coretemp-isa-0001
Adapter: ISA adapter
Package id 1: +32.0°C (high = +97.0°C, crit = +107.0°C)
Core 0: +29.0°C (high = +97.0°C, crit = +107.0°C)
Core 1: +31.0°C (high = +97.0°C, crit = +107.0°C)
Core 2: +30.0°C (high = +97.0°C, crit = +107.0°C)
Core 3: +30.0°C (high = +97.0°C, crit = +107.0°C)
Core 4: +30.0°C (high = +97.0°C, crit = +107.0°C)
Core 5: +31.0°C (high = +97.0°C, crit = +107.0°C)
Core 6: +31.0°C (high = +97.0°C, crit = +107.0°C)
Core 7: +31.0°C (high = +97.0°C, crit = +107.0°C)
Core 8: +32.0°C (high = +97.0°C, crit = +107.0°C)
Core 9: +32.0°C (high = +97.0°C, crit = +107.0°C)
Core 10: +31.0°C (high = +97.0°C, crit = +107.0°C)
Core 11: +29.0°C (high = +97.0°C, crit = +107.0°C)
Core 12: +30.0°C (high = +97.0°C, crit = +107.0°C)
Core 13: +31.0°C (high = +97.0°C, crit = +107.0°C)
Core 14: +30.0°C (high = +97.0°C, crit = +107.0°C)
Core 15: +32.0°C (high = +97.0°C, crit = +107.0°C)
Core 16: +30.0°C (high = +97.0°C, crit = +107.0°C)
Core 17: +31.0°C (high = +97.0°C, crit = +107.0°C)
Core 18: +29.0°C (high = +97.0°C, crit = +107.0°C)
Core 19: +29.0°C (high = +97.0°C, crit = +107.0°C)
Core 20: +30.0°C (high = +97.0°C, crit = +107.0°C)
Core 21: +29.0°C (high = +97.0°C, crit = +107.0°C)
Core 22: +30.0°C (high = +97.0°C, crit = +107.0°C)
Core 23: +30.0°C (high = +97.0°C, crit = +107.0°C)
Core 24: +31.0°C (high = +97.0°C, crit = +107.0°C)
Core 25: +31.0°C (high = +97.0°C, crit = +107.0°C)
Core 26: +30.0°C (high = +97.0°C, crit = +107.0°C)
Core 27: +31.0°C (high = +97.0°C, crit = +107.0°C)
Core 28: +28.0°C (high = +97.0°C, crit = +107.0°C)
Core 29: +31.0°C (high = +97.0°C, crit = +107.0°C)
Core 30: +31.0°C (high = +97.0°C, crit = +107.0°C)
Core 31: +30.0°C (high = +97.0°C, crit = +107.0°C)
Core 32: +30.0°C (high = +97.0°C, crit = +107.0°C)
Core 33: +30.0°C (high = +97.0°C, crit = +107.0°C)
Core 34: +30.0°C (high = +97.0°C, crit = +107.0°C)
Core 35: +28.0°C (high = +97.0°C, crit = +107.0°C)
Core 36: +29.0°C (high = +97.0°C, crit = +107.0°C)
Core 37: +29.0°C (high = +97.0°C, crit = +107.0°C)
Sesors matching¶
$ cat /etc/sensors.d/imb760.conf
bus "i2c-0" "SMBus I801 adapter at 0780"
chip "nct7802-i2c-0-28"
label fan1 "FAN1"
label fan2 "FAN2"
label fan3 "FAN3"
chip "nct7802-i2c-0-2f"
label fan1 "FAN4"
label fan2 "FAN5"
label fan3 "FAN6"
chip "f81768d-isa-0a20"
label fan1 "FAN-CPU1"
label fan2 "FAN-CPU2"
ignore fan3
Manual fan control¶
Способа крутить обороты из BMC найдено не было, все стандартные и не очень impi raw команды не проходят
Cpu fans¶
Если я правильно понимаю то настроить поведение вертушек на цпу можно только через меню в биосе (см. маунал)
Sys fans¶
Системные вертушки можно легко крутить из системы. Всё достаточно стандартно
$ echo 1 | sudo tee /sys/class/hwmon/hwmon7/pwm2_enable #enable FAN2 manual mode
$ echo 50 | sudo tee /sys/class/hwmon/hwmon7/pwm2 #set FAN2 to 50 (allowed 0-255)
Change BMC fan thresholds¶
$ sudo ipmitool sensor thresh FAN1 lower 0 0 0
Locating sensor record 'FAN1'...
Setting sensor "FAN1" Lower Non-Recoverable threshold to 0.000
Setting sensor "FAN1" Lower Critical threshold to 0.000
Setting sensor "FAN1" Lower Non-Critical threshold to 0.000
$ # run prev command for all FANx
$ sudo ipmitool sensor list all
+12V | 12.100 | Volts | ok | 9.600 | 10.200 | 10.800 | 13.200 | 13.800 | 14.400
+5V | 4.928 | Volts | ok | 4.510 | 4.620 | 4.752 | 5.258 | 5.368 | 5.500
+3.3V | 3.300 | Volts | ok | 2.978 | 3.051 | 3.139 | 3.460 | 3.548 | 3.635
+5VSB | 4.906 | Volts | ok | 4.510 | 4.620 | 4.752 | 5.258 | 5.368 | 5.500
+3VSB | 3.285 | Volts | ok | 2.978 | 3.051 | 3.139 | 3.460 | 3.548 | 3.635
SYS1_TEMP | 31.000 | degrees C | ok | -40.000 | -30.000 | -20.000 | 70.000 | 90.000 | 100.000
CPU1_TEMP | 37.000 | degrees C | ok | -40.000 | -30.000 | -20.000 | 100.000 | 110.000 | 120.000
SYS2/CPU2_TEMP | 37.000 | degrees C | ok | -40.000 | -30.000 | -20.000 | 100.000 | 110.000 | 120.000
FAN1 | 1200.000 | RPM | ok | 0.000 | 0.000 | 0.000 | 31000.000 | 32000.000 | 33000.000
FAN2 | 1000.000 | RPM | ok | 0.000 | 0.000 | 0.000 | 31000.000 | 32000.000 | 33000.000
FAN3 | 0.000 | RPM | nr | 0.000 | 0.000 | 0.000 | 31000.000 | 32000.000 | 33000.000
FAN4 | 1000.000 | RPM | ok | 0.000 | 0.000 | 0.000 | 31000.000 | 32000.000 | 33000.000
FAN5 | 0.000 | RPM | nr | 0.000 | 0.000 | 0.000 | 31000.000 | 32000.000 | 33000.000
FAN6 | 0.000 | RPM | nr | 0.000 | 0.000 | 0.000 | 31000.000 | 32000.000 | 33000.000
FAN7 | 0.000 | RPM | nr | 0.000 | 0.000 | 0.000 | 31000.000 | 32000.000 | 33000.000
FAN8 | 0.000 | RPM | nr | 0.000 | 0.000 | 0.000 | 31000.000 | 32000.000 | 33000.000
Как заставить материнку считать 0 оборотов нормой не нашёл, они всегда вываливаются в non rec mode
BMC / BIOS¶
Программно вытащить прошивки из флешек не удалось.
Дампы снятые прищепкой:
| Type | Name | User | BIN | Info |
|---|---|---|---|---|
| BIOS | stock-1 | mixa3607 | log+dump | many boots => dump |
| BIOS | stock-2 | mixa3607 | log+dump | reset => save => dump |
| BIOS | stock-1 | EvILLIDAN | log+dump | |
| BMC | stock-1 | EvILLIDAN | dump |
BIOS свободно открывается через AMIBCP (tools) и UEFITool (tools)
